Products
3DHI
StingArray™ Phased Array Module

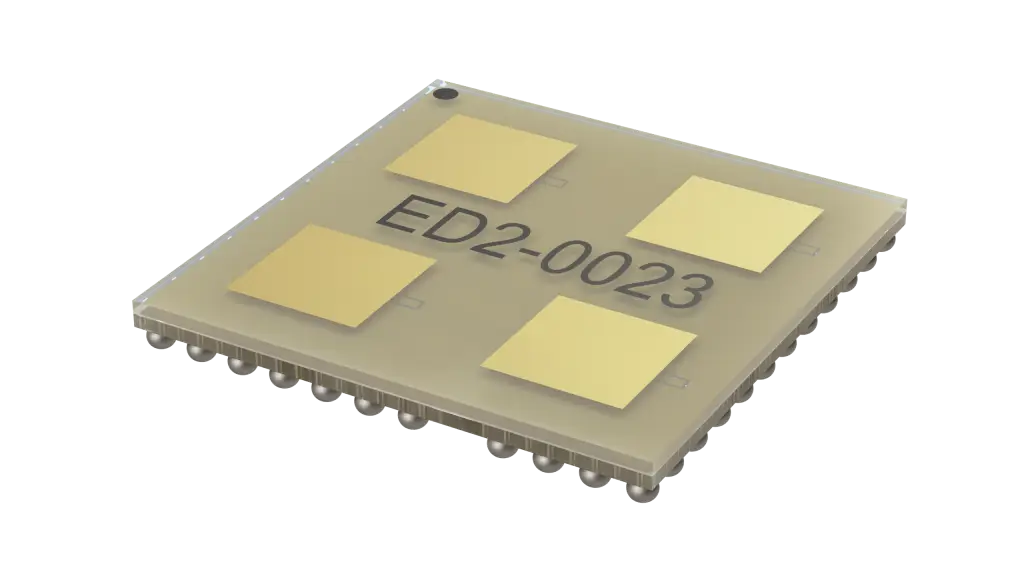

ED2’s StingArray™-series Phased Array Module (PAM) is an Antenna-in-Package, integrating 2×2 radiating elements with a beamforming Half-Duplex transceiver for n257 band applications.
- 3D Heterogeneous Integrated Module
- Integrated antennas (2×2) with Beamformer IC
- High-performance
Wafer-level process for cost reduction - Highly-repeatable performance from unit to unit
- SMT package
- Hermetic
Quote/Purchase:
Components
Mixer Module

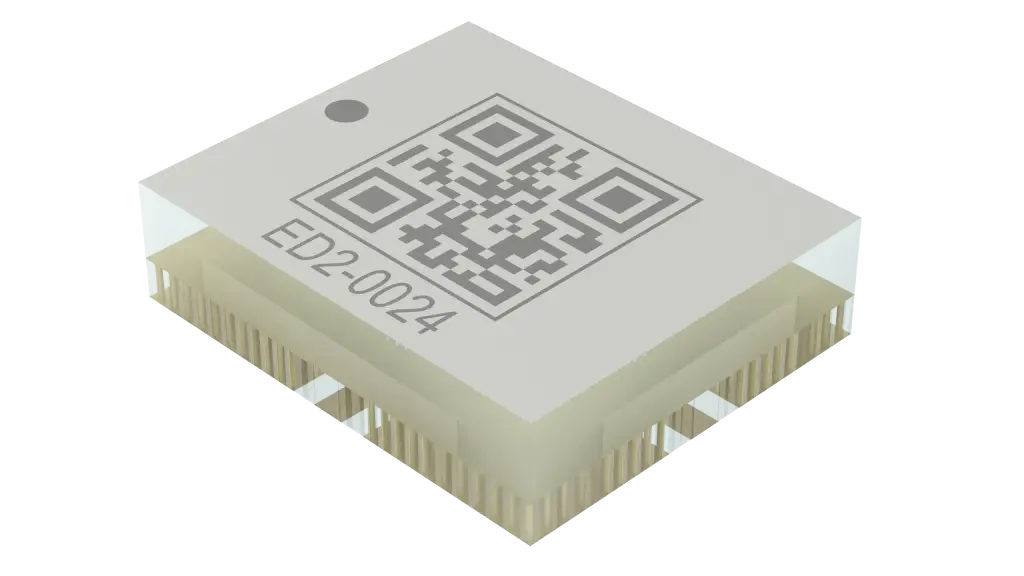

ED2-0024 is a double-balanced passive 2.5 x 2.5mm glass package mixer.
- Wideband RF and LO, 20 to 65 GHz
- Wideband IF, DC to 20 GHz
- High L-R isolation, 40 dB typical at 40 GHz, and High input IP3, +23 dBm typical
- Useable as Up and Down converter
- High image rejection, 25 dB
- High LO-RF isolation, 45 to 50 dB
- High LO-IF isolation, 30 dB
- Wide bandwidth, 18 to 65 GHz
- Wide IF Bandwidth, DC to 20GHz
- SMT package works up to 90GHz
- Double balanced
- Operating temperature -40 °C to 85 °C
- 2.5 x 2.5 x .264 mm, SMT glass package
Quote/Purchase:
Passives
Splitter / Combiner
The ED2 2-way coaxial power splitter or combiner is a SMA connectorized solution for your RF subsystem needs. Designed to operate over a frequency range of 750 to 2,000 MHz as well as passing a DC signal between ports.
- Low Insertion loss, 0.2 dB typical
- Frequency range of 750 to 2000 MHz
- Isolation 20 dB typical
- Excellent input VSWR, 1.22:1 typical
- Excellent output VSWR, 1.12:1 typical
- Characteristic impedance: 50Ω
- -55˚ C to +100˚ C
- SMA connectors
- Up to 5W power input
- Customizable to other frequencies and
bandwidths
Quote/Purchase:
Products (Additional)

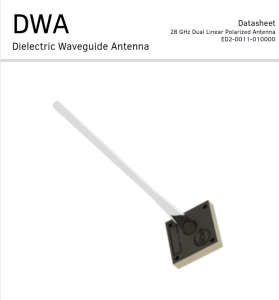

28 GHz Dielectric Waveguide Antenna

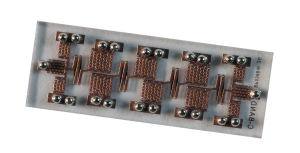

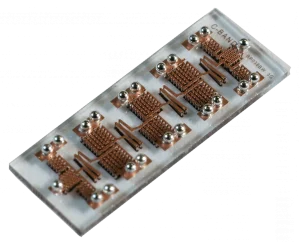

3.55 GHz (CBRS) Bandpass Filter

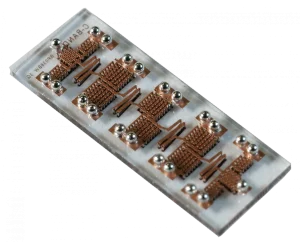

3.75 GHz (C-band) Bandpass Filter

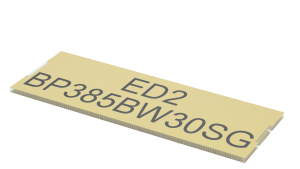

28 GHz Bandpass Filter
